Vacuum Brazed Diamond Grinding Cup Wheel M14/16 Flange

Product Details:

Place of Origin:	CHINA
Brand Name:	RTCRAFT or OEM
Certification:	ISO,MPA,TUV
Model Number:	4"-5"

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Plastic tube,Blister card,Aluminium box
Delivery Time:	20-30days after your deposite
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Product Name::	Diamond Grinding Cup Wheel	Body Material::	Alloy Steel
Tipped Material::	Diamond	Processing::	Vacuum Brazed
Surface::	Bright	Flange::	M14/16
Highlight:	diamond blade grinding wheel , diamond cutting blade

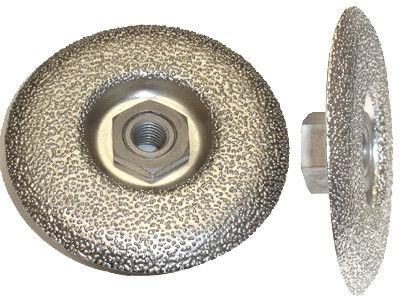

Vacuum Brazed Diamond Grinding Disc, Continuous Diamond Cup Wheel

Product Specifications

Product Name	Diamond Grinding Cup Wheel
Body Material	Alloy Steel
Tipped Material	Diamond
Processing	Vacuum Brazed
Surface	Bright
Flange	M14/16

Product Details

Material: Diamond, Metal
Size: 4"-5"
Processing: Vacuum Brazed
Surface: Bright
Package: Double blister card, Color box, etc
Flange: M14/M16
Segment Type: Continuous

Key Features

Vacuum Brazed Technology with extremely aggressive grinding capacity
Cutter/Grinder Design, serving as edge shaping and edge cutting wheels
Well balanced wheel to eliminate vibration for more stable performance
Available in Coarse, Medium and Fine Grits with 5/8"-11 Thread

Available Sizes

Art No.	Diameter	Bore	Hole	Grit
20230001	4" (100mm)	M14 or 5/8"-11	16/20/22.23mm	Coarse
20230002	4" (100mm)	M14 or 5/8"-11	16/20/22.23mm	Medium
20230003	4" (100mm)	M14 or 5/8"-11	16/20/22.23mm	Fine
20230004	4-1/2" (115mm)	M14 or 5/8"-11	16/20/22.23mm	Coarse
20230005	4-1/2" (115mm)	M14 or 5/8"-11	16/20/22.23mm	Medium
20230006	4-1/2" (115mm)	M14 or 5/8"-11	16/20/22.23mm	Fine
20230007	5" (125mm)	M14 or 5/8"-11	16/20/22.23mm	Coarse
20230008	5" (125mm)	M14 or 5/8"-11	16/20/22.23mm	Medium
20230009	5" (125mm)	M14 or 5/8"-11	16/20/22.23mm	Fine

Other sizes available upon request (custom orders accepted)

Packaging & Delivery

Package: Double Blister Card, PVC Bag, Color Envelope box, White Paper box
Delivery Time: 20-30 days after deposit
Shipping Methods: By sea, air, or express
Samples: Available for free testing
Payment Options: T/T, L/C, Western Union, Paypal
Payment Terms: 20-30% advance payment, balance before shipment or against Copy of B/L
