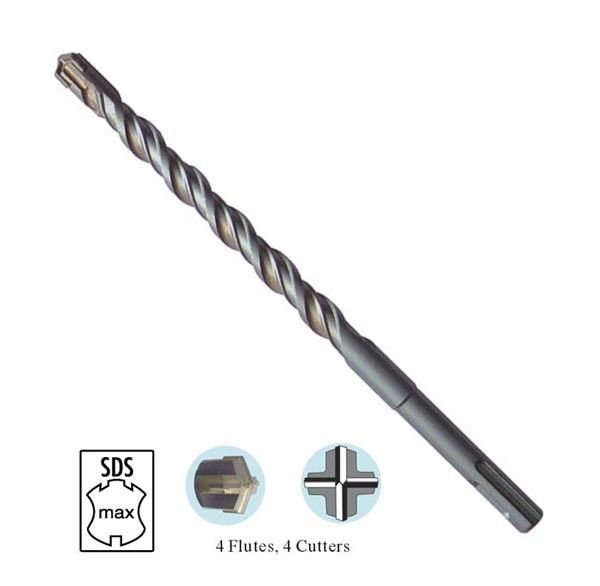

SDS MAX Hammer Drill Bit 12-40mm Cross Tipped for Concrete

Product Details:

Place of Origin:	CHINA
Brand Name:	RTCRAFT or OEM
Certification:	ISO,MPA,TUV
Model Number:	Dia:4-30mm,Length:110-1000mm

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	pvc bag, Plastic tube,Plastic box,Plastic Hanger
Delivery Time:	about 20 days according to your requirements
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000000pcs/month

Contact Now

Detailed Product Description

Product Name::	SDS MAX Hammer Drill Bits	Tipped::	Cross Tipped
Material::	40Cr,tungsten Carbide	Shank::	SDS MAX
Diameter::	12-40mm	Standard::	DIN Or ANSI
Highlight:	glass and tile drill bit , sds hammer drill bits

Sandblasted SDS MAX Hammer Drill Bit for Concrete Cross Tipped

Product Specifications

Attribute	Value
Product Name	SDS MAX hammer drill bits
Tipped	Cross Tipped
Material	40Cr, tungsten carbide
Shank	SDS MAX
Diameter	12-40mm
Standard	DIN or ANSI

Key Features

Body Material: 40Cr
Tipped Material: Tungsten Carbide Tipped
Process: Milled
Surface: Sandblasted
Shank: SDS MAX

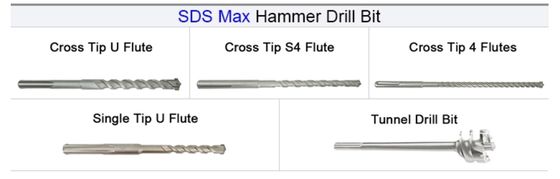

Flute: Single, Double, Sander
Point Angle: 130 degree
Tipped: Cross Tipped

Technical Advantages

Fast drilling professional bit for SDS Max systems
Multi Cutter design (5/8" and above) for faster drilling, longer life and rounder holes

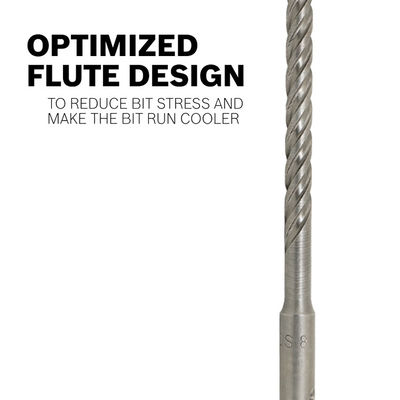

Double narrow land flute design for faster dust extraction, less vibration, less friction and more impact energy to the tip

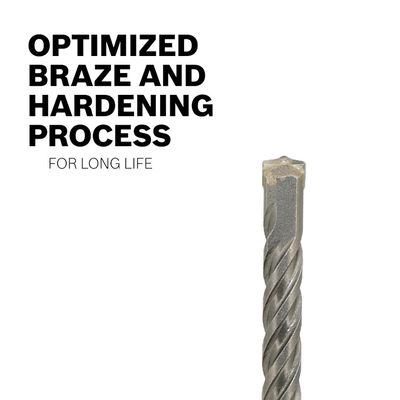

Tool shaft is heat treated, annealed and shot peened for longer life
Premium grade hammer carbide for use with heavy duty hammers
Made to ANSI standards
Holes from 12mm to 40mm

Available Sizes

Diameter x Overall Length	Working Code Length	Diameter x Overall Length	Working Code Length
12.0 x 340mm	200mm	22.0 x 520mm	400mm
12.0 x 540mm	400mm	22.0 x 920mm	800mm
13.0 x 390mm	250mm	24.0 x 320mm	200mm
13.0 x 540mm	400mm	24.0 x 520mm	400mm
14.0 x 340mm	200mm	25.0 x 320mm	200mm
14.0 x 540mm	400mm	25.0 x 520mm	400mm
15.0 x 340mm	200mm	25.0 x 920mm	800mm
15.0 x 540mm	400mm	26.0 x 370mm	250mm
16.0 x 340mm	200mm	26.0 x 520mm	400mm
16.0 x 540mm	400mm	28.0 x 370mm	250mm
16.0 x 920mm	770mm	28.0 x 570mm	450mm
18.0 x 340mm	200mm	30.0 x 370mm	250mm
18.0 x 540mm	400mm	30.0 x 570mm	450mm
19.0 x 390mm	250mm	32.0 x 370mm	250mm
19.0 x 540mm	400mm	32.0 x 570mm	450mm
20.0 x 320mm	200mm	32.0 x 920mm	800mm
20.0 x 520mm	400mm	35.0 x 570mm	450mm
20.0 x 920mm	800mm	38.0 x 570mm	450mm
22.0 x 320mm	200mm	40.0 x 570mm	450mm
