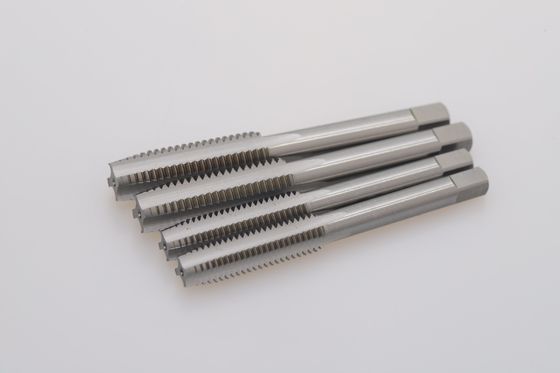

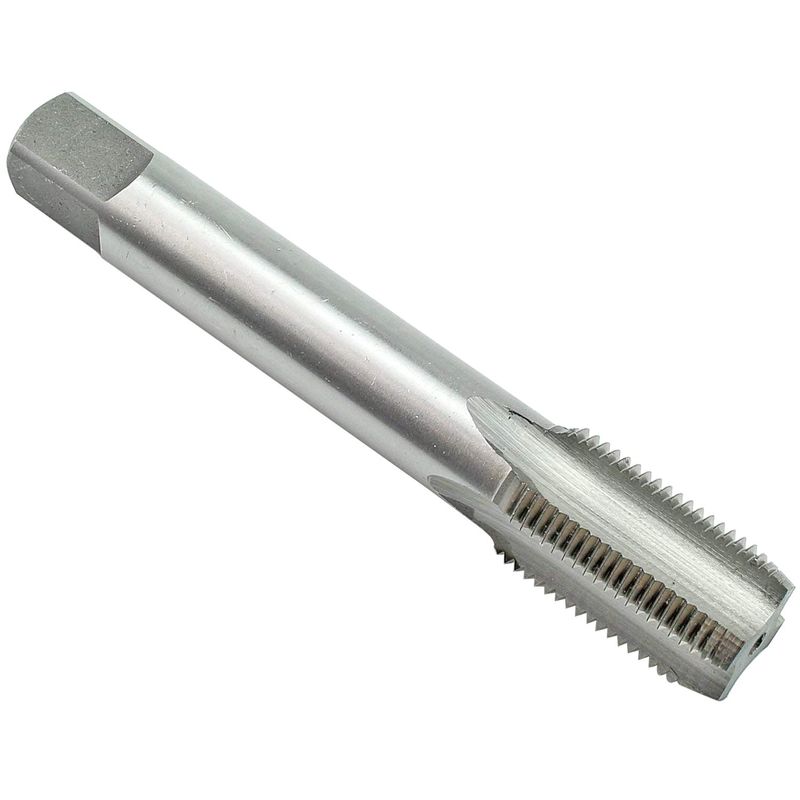

ISO M50 Bright Finish Screw DIN352 HSS Machine Taps

ISO M50 Bright Finish Screw DIN352 HSS Machine Taps

ISO M50 Bright Finish Screw DIN352 HSS Machine Taps
ISO M50 Bright Finish Screw DIN352 HSS Machine Taps
ISO M50 Bright Finish Screw DIN352 HSS Machine Taps
Product Details:
Place of Origin: China
Brand Name: RTCRAFT OR OEM
Certification: ISO,MPA,TUV
Model Number: M3,M4,M5,ETC
Payment & Shipping Terms:
Minimum Order Quantity: 300Sets
Price: Negotiation
Packaging Details: Plastic box,metal box for set
Delivery Time: 35 days after your deposite
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 500000pieces each month
Contact Now
Detailed Product Description
Product Name:: Taps And Dies Type:: HSS Machine Taps
Material:: High Speed Steel Size:: M3-M50
Surface:: Bright,Ti-coated Flute:: Straight Flute
High Light:

DIN352 HSS Machine Taps

,

M50 HSS Machine Taps

,

Bright Finish Screw HSS Taps

DIN352 Metric Size HSS Machine Taps with Bright Finished Screw Taps



Description of HSS Machine Taps:



1. Material:HSS 4241,4341,M2,M35

2. Size:M3-M50

3. Processing:Fully Ground

4. Flute:Straight Flute

5. Surface:Bright Finished,Ti-coated

6. Hole type:Blind hole

7. Pitch:Coarse and Fine



Feature of HSS Machine Taps:



  • Used to make new threads or re-thread damaged and/or jammed threads
  • High Speed Steel Hand Taps come in three styles: Taper Style: Starts the thread square with the workpiece. Plug Style: Generally used in thru holes. Bottom Style: Generate the thread to the bottom of the hole.
  • High speed steel hand taps are the most versatile taps for hand use, or for tapping under power
  • Hand taps are popular for use in general machine tapping or CNC tapping
  • Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications



Application:



For hand tapping of through or blind holes in ferrous and non-ferrous Alloys.



Size:

ISO M50 Bright Finish Screw DIN352 HSS Machine Taps 0

SIZE OVERALL LENGTH THREAD LENGTH
M2*0.4 36 8.0
M2.2*0.45 36 9.0
M2.5*0.45 40 9.0
M3*0.5 40 11.0
M3.5*0.6 45 13.0
M4*0.7 45 13.0
M5*0.8 50 16.0
M5.5*0.9 50 19.0
M6*1 50 19.0
M7*1 50 19.0
M8*1.25 56 22.0
M9*1.25 63 22.0
M10*1.5 70 24.0
M11*1.5 70 24.0
M12*1.75 75 29.0
M14*2 80 30.0
M16*2 80 32.0
M18*2.5 95 40.0
M20*2.5 95 40.0
M22*2.5 100 40.0
M24*3 110 50.0
M27*3 110 50.0
M30*3.5 125 56.0
M33*3.5 125 56.0
M36*4 150 63.0
M39*4 150 63.0
M42*4.5 150 63.0
M45*4.5 160 70.0
M48*4 180 75.0
M52*5 180 75.0
M56*5.5 200 85.0
M60*5.5 200 85.0
M64*6 220 90.0
M68*6 220 90.0



Package and Delivery:

1. Package:Plastic box

2. Delivery:35 Days after your deposite

3. Shipping:By sea,By air,if small order,we can provide the Express.

ISO M50 Bright Finish Screw DIN352 HSS Machine Taps 1ISO M50 Bright Finish Screw DIN352 HSS Machine Taps 2



Payment and Sample Policy:

1. Payment:30%T/T in advance,the balance before shipment or against the B/L

2. Other payment could be acceptable.

3. Sample poliy:We can provide samples for free for testing.

4. Samples time:About 7-10days.
