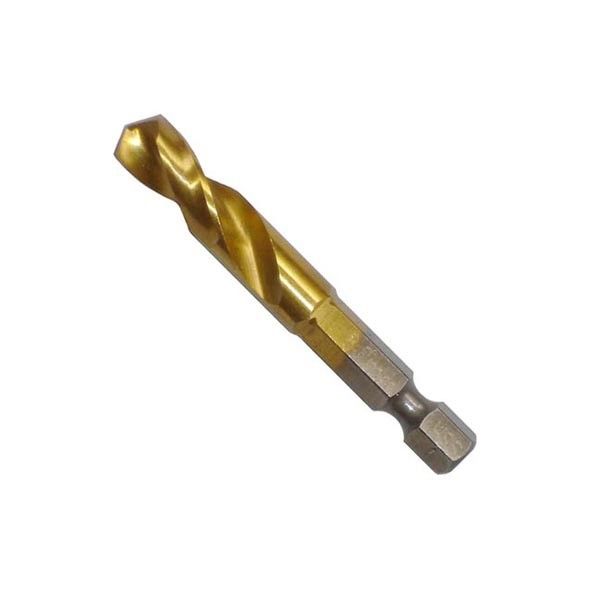

Hex Shank HSS Drill Bits Titanium Coated DIN Standard

Product Details:

Place of Origin:	CHINA
Brand Name:	RTCRAFT or OEM
Certification:	ISO,MPA,TUV
Model Number:	1-13mm

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	pvc bag,blister card,plastic tube,plastic box
Delivery Time:	about 20 days after your deposite
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Product Name::	HSS Drill Bits	Processing::	Fully Ground
Surface::	Black Oxide,Bright Finished,Amber Finished,Ti-coated	Point::	118/135 Degree Split Point
Standard::	DIN Standard	Shank::	Hex Shank
Highlight:	hss twist drill bit , high speed steel hss drill bits

Hex Shank HSS Drill Bits For Steel, High Speed Twist Drill Bit Titanium Coated

Product Specifications

Product Name:	HSS Drill Bits
Processing:	Fully Ground
Surface:	Black Oxide, Bright finished, Amber finished, Ti-coated
Point:	118/135 degree split point
Standard:	DIN Standard
Shank:	Hex Shank

Product Description

HEX Shank HSS Twist Drill Bits with Titanium Coating for Metal

Material: HSS 4241, 4341, 6542, M35
Process: Fully Ground
Surface: Ti-coated, with other color options available
Point: 118/135° split point
Hardness: HRC60-68
Size: 1-13mm
Availability: Hex shank HSS drill bits set available

High Speed Steel Composition

DESCRIPTION OF HSS	C%	W%	Mo%	Cr%	V%	Co%	Si%	Mn%	P%	S%
W2MoCr4V(F4341)	0.95-1.05	1.7-2.4	0.8-1.2	3.8-4.4	0.8-1.2		1.0-1.4	0.2-0.4	<=0.03	<=0.03
W4Mo3Cr4V(4341)	0.88-0.98	3.5-4.5	2.5-3.5	3.8-4.4	1.2-1.8		0.5-1.2	0.2-0.4	<=0.03	<=0.03
W9Mo3Cr4V(9341)	0.77-0.87	8.5-9.5	2.7-3.3	3.8-4.4	1.3-1.7	-	0.2-0.4	0.2-0.4	<=0.03	<=0.03
W6Mo5Cr4V2(M2)	0.8-0.9	5.5-6.75	4.5-5.5	3.8-4.4	1.75-2.2	-	0.2-0.4	0.2-0.4	<=0.03	<=0.03
W6Mo5Cr4V2Co5(M35)	0.9-0.95	5.5-6.5	4.5-5.5	3.8-4.4	1.75-2.2	4.5-5.5	0.2-0.4	0.2-0.4	<=0.03	<=0.03
W2Mo9Cr4V2Co8(M42)	1.05-1.15	1.15-1.85	9.0-10.0	3.5-4.25	0.95-1.25	7.75-8.75	0.15-0.65	0.15-0.4	<=0.02	<=0.025
