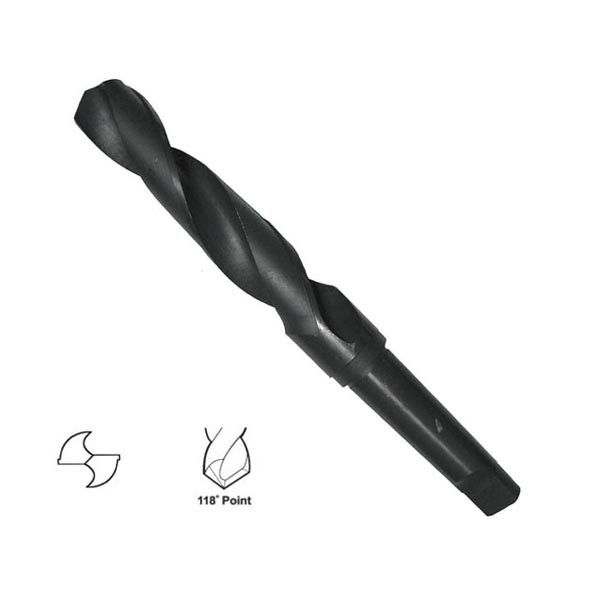

Morse Taper Shank HSS Drill Bits DIN345 Black Oxide

Product Details:

Place of Origin:	CHINA
Brand Name:	RTCRAFT or OEM
Certification:	ISO,MPA,TUV
Model Number:	3-100mm

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	blister card,plastic tube,plastic box,paper box
Delivery Time:	about 20 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Product Name::	HSS Drill Bits	Material::	High Speed Steel
Processing::	Milled,Rolled	Surface::	Black Oxide
Type::	Twist Drill Bits	Shank::	Morse Taper Shank
Highlight:	high speed steel drill bits , high speed steel hss drill bits

Morse Taper Shank Twist HSS Drill Bits For Stainless Steel DIN345 Black Oxide

Product Specifications

Attribute	Value
Product Name	HSS Drill Bits
Material	High Speed Steel
Processing	Milled, Rolled
Surface	Black Oxide
Type	Twist Drill Bits
Shank	Morse Taper Shank

Product Description

DIN345 Morse Taper Shank HSS Twist Drill Bits for Metal Black Oxide

Morse Shank HSS Drill Bits Features:

Material: HSS 4241, 4341, M35
Process: Rolled, Milled
Surface: Black Oxide
Point: 118°/135° split point
Shank: Straight Shank, triangle shank, hex shank
Usage: Drilling hole for metal

High Speed Steel Material Composition:

DESCRIPTION OF HSS	C %	W %	Mo %	Cr %	V %	Co %	Si %	Mn %	P %	S %
W2MoCr4V(4241)	0.95-1.05	1.7-2.4	0.8-1.2	3.8-4.4	0.8-1.2	-	1.0-1.4	0.2-0.4	<=0.03	<=0.03
W4Mo3Cr4V(4341)	0.88-0.98	3.5-4.5	2.5-3.5	3.8-4.4	1.2-1.8	-	0.5-1.2	0.2-0.4	<=0.03	<=0.03
W9Mo3Cr4V(9341)	0.77-0.87	8.5-9.5	2.7-3.3	3.8-4.4	1.3-1.7	-	0.2-0.4	0.2-0.4	<=0.03	<=0.03
W6Mo5Cr4V2(M2)	0.8-0.9	5.5-6.75	4.5-5.5	3.8-4.4	1.75-2.2	-	0.2-0.4	0.2-0.4	<=0.03	<=0.03
W6Mo5Cr4V2Co5(M35)	0.9-0.95	5.5-6.5	4.5-5.5	3.8-4.4	1.75-2.2	4.5-5.5	0.2-0.4	0.2-0.4	<=0.03	<=0.03
W2Mo9Cr4V2Co8(M42)	1.05-1.15	1.15-1.85	9.0-10.0	3.5-4.25	0.95-1.25	7.75-8.75	0.15-0.65	0.15-0.4	<=0.02	<=0.025

Taper Shank Drill Bits Size Chart:

Package and Shipping Information:

Standard Package: Individual pieces in paper/plastic box with inner box and outer carton
Custom Packaging: Available in blister card, plastic tube, or paper box per requirements
Samples/Small Orders: Shipped via DHL, FedEx, TNT or other couriers
Bulk Orders: Shipped by sea
