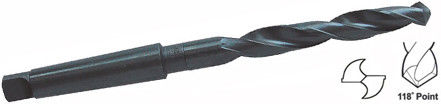

16mm HSS Taper Shank Drill Bit DIN341 Long Type for Metal

Product Details:

Place of Origin:	CHINA
Brand Name:	RTCRAFT or OEM
Certification:	ISO,MPA,TUV
Model Number:	5-50mm

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	blister card,plastic tube,plastic box,paper box
Delivery Time:	about 20 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Product Name::	HSS Drill Bits	Material::	High Speed Steel
Processing::	Milled,Rolled	Surface::	Black Oxide
Flute::	Type N	Point::	118 Degree
Highlight:	hss twist drill bit , high speed steel hss drill bits

16mm DIN341 Long Type HSS Taper Shank HSS Twist Drill Bits Black Oxide For Metal

Product Specifications

Attribute	Value
Product Name	HSS Drill Bits
Material	High Speed Steel
Processing	Milled, Rolled
Surface	Black Oxide
Flute	Type N
Point	118 degree

Product Description

DIN341 Long Type HSS Taper Shank HSS Twist Drill Bits Black Oxide for Metal

Taper Shank HSS Drill Bits Features

Material: HSS 4241, 4341, 6542, M35
Process: Rolled, Milled
Surface: Black Oxide
Point: 118°/135° split point
Shank: Morse Taper Shank
Usage: Drilling hole for metal

High Speed Steel Composition

DESCRIPTION OF HSS	C %	W %	Mo %	Cr %	V %	Co %	Si %	Mn %	P %	S %
W2MoCr4V(4241)	0.95-1.05	1.7-2.4	0.8-1.2	3.8-4.4	0.8-1.2		1.0-1.4	0.2-0.4	<=0.03	<=0.03
W4Mo3Cr4V(4341)	0.88-0.98	3.5-4.5	2.5-3.5	3.8-4.4	1.2-1.8		0.5-1.2	0.2-0.4	<=0.03	<=0.03
W9Mo3Cr4V(9341)	0.77-0.87	8.5-9.5	2.7-3.3	3.8-4.4	1.3-1.7	-	0.2-0.4	0.2-0.4	<=0.03	<=0.03
W6Mo5Cr4V2(M2)	0.8-0.9	5.5-6.75	4.5-5.5	3.8-4.4	1.75-2.2	-	0.2-0.4	0.2-0.4	<=0.03	<=0.03
W6Mo5Cr4V2Co5(M35)	0.9-0.95	5.5-6.5	4.5-5.5	3.8-4.4	1.75-2.2	4.5-5.5	0.2-0.4	0.2-0.4	<=0.03	<=0.03
W2Mo9Cr4V2Co8(M42)	1.05-1.15	1.15-1.85	9.0-10.0	3.5-4.25	0.95-1.25	7.75-8.75	0.15-0.65	0.15-0.4	<=0.02	<=0.025

Size Specifications

D	L1	L2	MT		D	L1	L2	MT		D	L1	L2	MT

L2=FLUTE LENGTH; L1=OVERALL LENGTH

Morse Taper Shank HSS drill bits sets are available.

Product Types

Packaging Options

Normal Package: one piece in a paper box or plastic box, inner box, outer carton
Other package: Blister card, Plastic tube, Paper Box, according to your requirements

Shipping Information

Samples or small orders will be delivered by courier (DHL, FEDEX, TNT, etc.)
Normal orders will be delivered by sea

Delivery & Payment Terms

Delivery: 20-30 days after your deposit, according to your quantity
Payment: 30% payment in advance, the balance against copy of B/L, others can be negotiated
