Place of Origin: | CHINA |
Brand Name: | RTCRAFT or OEM |
Certification: | ISO,MPA,TUV |
Model Number: | 3-13mm |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | pvc bag,blister card,plastic tube,plastic box |
Delivery Time: | about 20 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 1000000pcs/month |
Product Name:: | HSS Drill Bits | Material:: | HSS Co 8%(M42) |
---|---|---|---|
Use: | Metal Drilling | Process: | Fully Ground |
Standard: | DIN / ANSI / Aircraft | Hardness: | 66-69HRC |
Highlight: | high speed steel drill bits,hss twist drill bit |

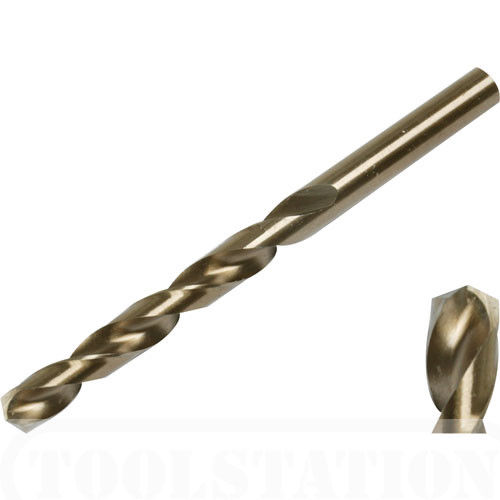

Product Name | HSS Drill Bits |
Material | HSS Co 8%(M42) |
Use | Metal Drilling |
Process | Fully Ground |
Standard | DIN / ANSI / Aircraft |
Hardness | 66-69HRC |
D (mm) | L2 (mm) | L1 (mm) | D (mm) | L2 (mm) | L1 (mm) | D (mm) | L2 (mm) | L1 (mm) | D (mm) | L2 (mm) | L1 (mm) |
---|---|---|---|---|---|---|---|---|---|---|---|
0.2 | 2.5 | 19 | 1.95 | 24 | 49 | 6 | 57 | 93 | 11.2 | 94 | 142 |
0.22 | 2.5 | 19 | 2 | 24 | 49 | 6.1 | 63 | 101 | 11.3 | 94 | 142 |
0.25 | 3 | 19 | 2.05 | 24 | 49 | 6.2 | 63 | 101 | 11.4 | 94 | 142 |
0.28 | 3 | 19 | 2.1 | 24 | 49 | 6.3 | 63 | 101 | 11.5 | 94 | 142 |
0.3 | 3 | 19 | 2.15 | 27 | 53 | 6.4 | 63 | 101 | 11.6 | 94 | 142 |
0.32 | 4 | 19 | 2.2 | 27 | 53 | 6.5 | 63 | 101 | 11.7 | 94 | 142 |
0.35 | 4 | 19 | 2.25 | 27 | 53 | 6.6 | 63 | 101 | 11.8 | 94 | 142 |
0.38 | 4 | 19 | 2.3 | 27 | 53 | 6.7 | 63 | 101 | 11.9 | 101 | 151 |
0.4 | 5 | 20 | 2.35 | 27 | 53 | 6.8 | 69 | 109 | 12 | 101 | 151 |
0.42 | 5 | 20 | 2.4 | 30 | 57 | 6.9 | 69 | 109 | 12.1 | 101 | 151 |
