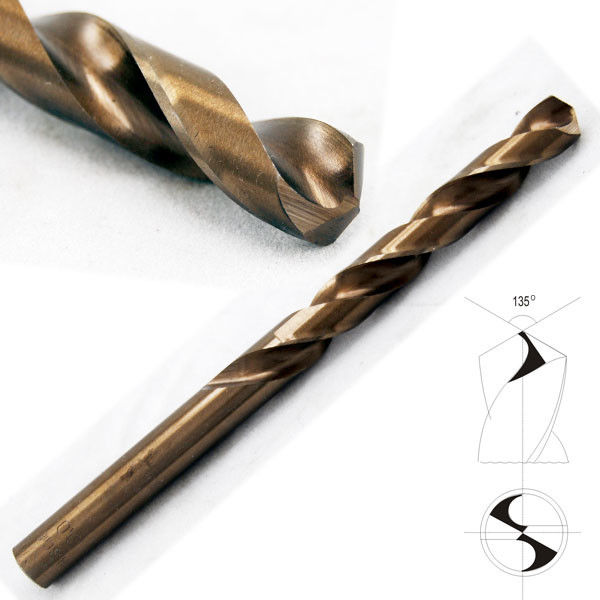

DIN338 HSS Drill Bits 1-13mm High Speed Steel Amber Finished

Product Details:

Place of Origin:	CHINA
Brand Name:	RTCRAFT or OEM
Certification:	ISO,MPA,TUV
Model Number:	0.1-20mm

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	pvc bag,blister card,plastic tube,plastic box
Delivery Time:	about 20 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000000pcs/month

Contact Now

Detailed Product Description

Product Name::	HSS Drill Bits	Material::	High Speed Steel
Processing::	Fully Ground	Surface::	Amber Finished
Point::	118 Or 135 Degree Split Point	Application:	Aluminum,Stainless Steel,copper,Carbon Steel,Cast Iron
Highlight:	high speed steel drill bits , hss twist drill bit

1-13mm DIN338 Industrial High Speed Steel HSS Drill Bits Straight Shank Amber Finished

Product Specifications

Product Name:	HSS Drill Bits
Material:	High Speed Steel
Processing:	Fully Ground
Surface:	Amber finished
Point:	118 or 135 degree split point
Application:	Aluminum, Stainless Steel, Copper, Carbon Steel, Cast Iron

DIN338 Straight Shank HSS Drill Bits for Metal with Amber Finish

Material: HSS 4241, 4341, M35, M42
Process: Fully Ground
Surface: Amber Finished
Point: 118°/135° split point
Shank: Straight Shank

Material Composition of High Speed Steel

DESCRIPTION OF HSS	C %	W %	Mo %	Cr %	V %	Co %	Si %	Mn %	P %	S %
W2MoCr4V(F4341)	0.95-1.05	1.7-2.4	0.8-1.2	3.8-4.4	0.8-1.2		1.0-1.4	0.2-0.4	<=0.03	<=0.03
W4Mo3Cr4V(4341)	0.88-0.98	3.5-4.5	2.5-3.5	3.8-4.4	1.2-1.8		0.5-1.2	0.2-0.4	<=0.03	<=0.03
W9Mo3Cr4V(9341)	0.77-0.87	8.5-9.5	2.7-3.3	3.8-4.4	1.3-1.7	-	0.2-0.4	0.2-0.4	<=0.03	<=0.03
W6Mo5Cr4V2(M2)	0.8-0.9	5.5-6.75	4.5-5.5	3.8-4.4	1.75-2.2	-	0.2-0.4	0.2-0.4	<=0.03	<=0.03
W6Mo5Cr4V2Co5(M35)	0.9-0.95	5.5-6.5	4.5-5.5	3.8-4.4	1.75-2.2	4.5-5.5	0.2-0.4	0.2-0.4	<=0.03	<=0.03
W2Mo9Cr4V2Co8(M42)	1.05-1.15	1.15-1.85	9.0-10.0	3.5-4.25	0.95-1.25	7.75-8.75	0.15-0.65	0.15-0.4	<=0.02	<=0.025

Size Specifications

D(mm)	L2(mm)	L1(mm)	D(mm)	L2(mm)	L1(mm)	D(mm)	L2(mm)	L1(mm)	D(mm)	L2(mm)	L1(mm)

Applications

Drilling holes on aluminum, plastic, wood, copper, iron, and stainless steel.

Packaging Options

Standard Package: 5/10 pieces in a plastic bag, then inner box and outer carton
Custom Options: Blister card, plastic tube, PVC pouch available per requirements
HSS drill bit sets available
