ANSI HSS Twist Drill Bits for Metal Stainless Steel

Product Details:

Place of Origin:	CHINA
Brand Name:	RTCRAFT or OEM
Certification:	ISO,MPA,TUV
Model Number:	Inch size

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	pvc bag,blister card,plastic tube,plastic box
Delivery Time:	about 20 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000000pcs/month

Contact Now

Detailed Product Description

Product Name::	HSS Drill Bits	Material::	High Speed Steel
Type::	Twist Drill Bit Short Type	Package::	PVC Bag Or Others Available
Processing::	Milled,Fully Ground	Flute::	Type N
Highlight:	high speed steel drill bits , high speed steel hss drill bits

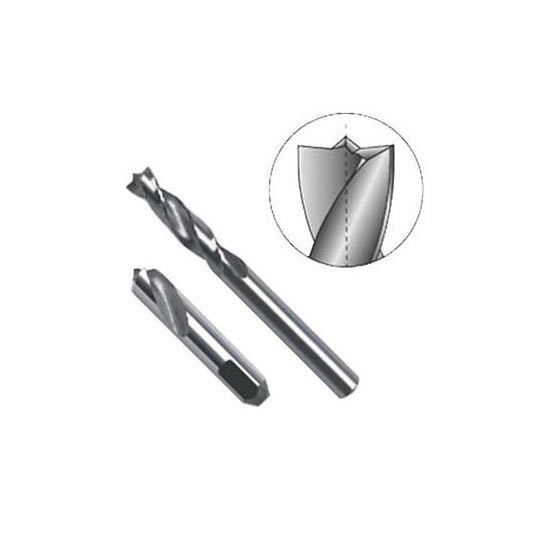

ANSI Screw Machine HSS Twist Drill Bits For Metal / Stainless Steel Straight Shank

Product Specifications

Product Name:	HSS Drill Bits
Material:	High Speed Steel
Type:	Twist Drill Bit short type
Package:	PVC Bag or others available
Processing:	Milled, Fully Ground
Flute:	Type N

Product Description

ANSI Screw Machine HSS Twist Drill Bits for Metal with Coffee Color

Key Features:

Material: HSS 4241, 4341, M35, M42
Process: Rolled, Polished, Fully ground
Surface: Ti-coated, Black Oxide, Bright finished, Amber finished, Black&Bright
Point: 118°/135° split point
Shank: Straight Shank
Drill Bits sets available
Ideal for drilling holes on iron, metal, and stainless steel sheet

ANSI Standard HSS Drill Bits Specification

Material and Hardness of High Speed Steel:

DESCRIPTION OF HSS	C%	W%	Mo%	Cr%	V%	Co%	Si%	Mn%	P%	S%
W2MoCr4V(F4341)	0.95-1.05	1.7-2.4	0.8-1.2	3.8-4.4	0.8-1.2		1.0-1.4	0.2-0.4	<=0.03	<=0.03
W4Mo3Cr4V(4341)	0.88-0.98	3.5-4.5	2.5-3.5	3.8-4.4	1.2-1.8		0.5-1.2	0.2-0.4	<=0.03	<=0.03
W9Mo3Cr4V(9341)	0.77-0.87	8.5-9.5	2.7-3.3	3.8-4.4	1.3-1.7	-	0.2-0.4	0.2-0.4	<=0.03	<=0.03
W6Mo5Cr4V2(M2)	0.8-0.9	5.5-6.75	4.5-5.5	3.8-4.4	1.75-2.2	-	0.2-0.4	0.2-0.4	<=0.03	<=0.03
W6Mo5Cr4V2Co5(M35)	0.9-0.95	5.5-6.5	4.5-5.5	3.8-4.4	1.75-2.2	4.5-5.5	0.2-0.4	0.2-0.4	<=0.03	<=0.03
W2Mo9Cr4V2Co8(M42)	1.05-1.15	1.15-1.85	9.0-10.0	3.5-4.25	0.95-1.25	7.75-8.75	0.15-0.65	0.15-0.4	<=0.02	<=0.025
