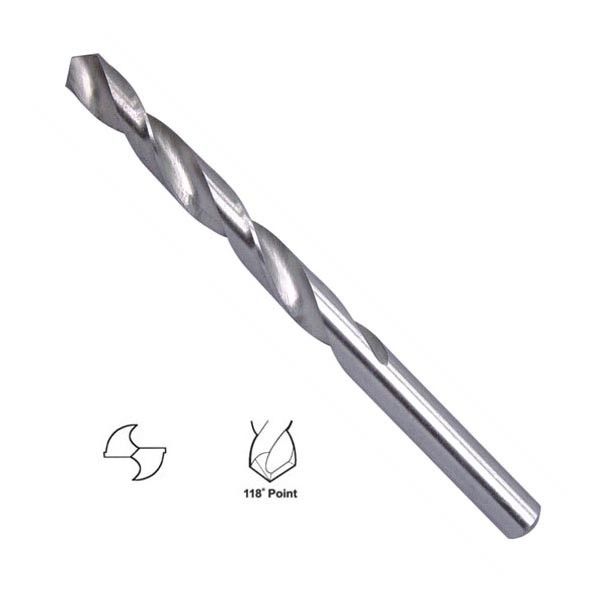

DIN338 HSS Drill Bits 1-13mm Straight Shank 118 Degree Point

Product Details:

Place of Origin:	CHINA
Brand Name:	RTCRAFT or OEM
Certification:	ISO,MPA,TUV
Model Number:	0.1-20mm

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	pvc bag,blister card,plastic tube,plastic box
Delivery Time:	about 20 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000000pcs/month

Contact Now

Detailed Product Description

Product Name::	HSS Drill Bits	Material::	High Speed Steel
Point::	118 Degree	Processing::	Polished
Type::	1-20mm	Standard::	Din Or Ansi
Highlight:	high speed steel drill bits , hss twist drill bit

1-13mm DIN338 Straight Shank HSS Drill Bits - Bright Finished Polished for Aluminium/Plastic

Product Specifications

Product Name	HSS Drill Bits
Material	High Speed Steel
Point Angle	118 degree
Processing	Polished
Size Range	1-20mm
Standard	DIN or ANSI

Product Description

DIN338 Straight Shank HSS Drill Bits with bright polished finish, designed for precision drilling in aluminium, plastic, wood, copper, and iron.

Key Features

Material: High Speed Steel (HSS 4241, 4341, 6542)
Surface: Bright polished finish
Point angle: 118°
Shank type: Straight shank
Ideal for drilling aluminium, plastic, wood, copper, and iron

High Speed Steel Composition

DESCRIPTION OF HSS	C%	W%	Mo%	Cr%	V%	Co%	Si%	Mn%	P%	S%
W2MoCr4V(F4341)	0.95-1.05	1.7-2.4	0.8-1.2	3.8-4.4	0.8-1.2		1.0-1.4	0.2-0.4	<=0.03	<=0.03
W4Mo3Cr4V(4341)	0.88-0.98	3.5-4.5	2.5-3.5	3.8-4.4	1.2-1.8		0.5-1.2	0.2-0.4	<=0.03	<=0.03
W9Mo3Cr4V(9341)	0.77-0.87	8.5-9.5	2.7-3.3	3.8-4.4	1.3-1.7	-	0.2-0.4	0.2-0.4	<=0.03	<=0.03
W6Mo5Cr4V2(M2)	0.8-0.9	5.5-6.75	4.5-5.5	3.8-4.4	1.75-2.2	-	0.2-0.4	0.2-0.4	<=0.03	<=0.03
W6Mo5Cr4V2Co5(M35)	0.9-0.95	5.5-6.5	4.5-5.5	3.8-4.4	1.75-2.2	4.5-5.5	0.2-0.4	0.2-0.4	<=0.03	<=0.03
W2Mo9Cr4V2Co8(M42)	1.05-1.15	1.15-1.85	9.0-10.0	3.5-4.25	0.95-1.25	7.75-8.75	0.15-0.65	0.15-0.4	<=0.02	<=0.025
