Cross Tipped Glass Tile Drill Bit YG6X 3mm-20mm Round Shank

Product Details:

Place of Origin:	CHINA
Brand Name:	RTCRAFT or OEM
Certification:	ISO,MPA,TUV
Model Number:	3-20MM

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	pvc bag,blister card,plastic tube,plastic box
Delivery Time:	about 20 days according to your requirements
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000000pcs/month

Contact Now

Detailed Product Description

Product Name::	Glass&Tile Drill Bits	Tipped Material::	YG6X
Body Material::	High Carbon Steel	Shank::	Round Shank
Tipped Type::	Cross Type
Highlight:	heavy duty masonry drill bits , glass and tile drill bit

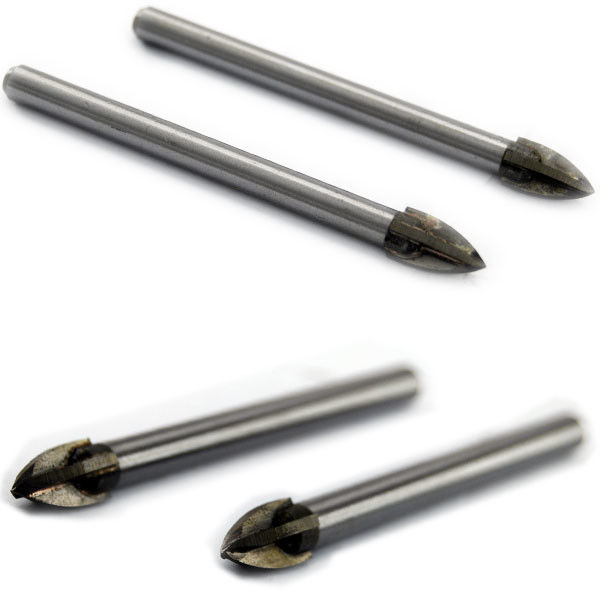

Cross Type Tipped Glass And Tile Drill Bit With Round Shank 3mm-20mm Size

Product Specifications

Product name	Glass & Tile Drill bits
Tipped Material	YG6X
Body Material	High Carbon Steel
Shank	Round Shank
Tipped type	Cross Type

Product Description

Material: High Carbon Steel (HCS)
Process: Milled
Surface: Sandblasted
Shank: Round shank
Tipped: Cross Tipped
Tipped material: YG6X

Key Features

Spear point reduces cutting pressure for cleaner holes
Cuts perfectly round holes without chipping or breaking
Best results achieved with lower RPM and cooling using water, vinegar or turpentine
For use with rotary drills only
Ideal for drilling glass, tile, mirrors and ceramics
Available in drill sets

Available Sizes

Metric Sizes (mm)			Fractional Sizes (inch)
Item No.	Dia.	Over Length	Item No.	Dia.	Over Length
600300S	3.0mm	55mm	600310S	1/8"	55mm
600400S	4.0mm	55mm	600390S	5/32"	55mm
600500S	5.0mm	55mm	600470S	3/16"	55mm
600600S	6.0mm	65mm	600630S	1/4"	65mm
600650S	6.5mm	65mm	600790S	5/16"	75mm
600800S	8.0mm	75mm	600950S	3/8"	90mm
601000S	10.0mm	90mm	601270S	1/2"	90mm
601200S	12.0mm	90mm	601580S	5/8"	90mm
601300S	13.0mm	90mm	601900S	3/4"	90mm
601600S	16.0mm	90mm
602000S	20.0mm	90mm

Other sizes can be customized according to your requirements.

Packaging & Delivery

Packaging options: Plastic tube, PVC Pouch, Plastic box, Blister card, or custom packaging
Delivery time: 20-30 days after deposit
Shipping methods: Express, air, or sea freight
