13pc Tungsten Carbide TCT Hole Saw Set for Stainless Steel 16-53mm

Product Details:

Place of Origin:	CHINA
Brand Name:	RTCRAFT or OEM
Certification:	ISO,MPA,TUV
Model Number:	16-53

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Plastic box,metal box,paper box
Delivery Time:	about 20 days according to your requirement
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Product Name::	T.C.T Hole Saw	Material::	High Carbon Steel Or 65Mn Steel
Tip Material::	Tungsten Carbidel YG10	Pilot Drills::	HSS 4341,9341,6542
Size::	16-53mm	Shank::	Triangle Shank
Highlight:	tungsten carbide tip hole saws , tct hole cutter with tungsten carbide teeth

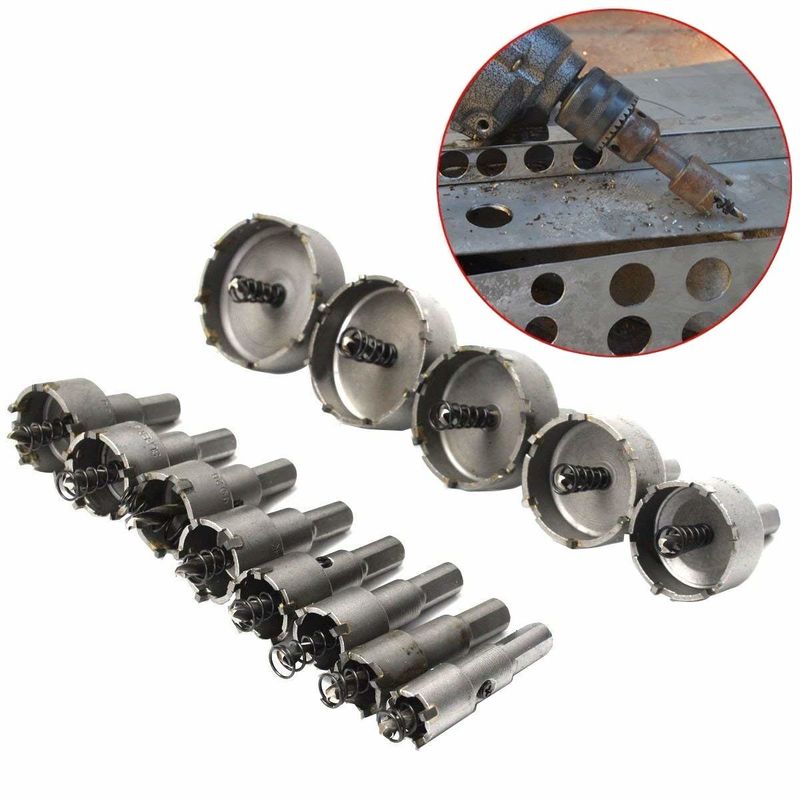

13pcs Tungsten Carbide Tip TCT Hole Saw Cutter For Stainless Steel Plate

Product Specifications

Attribute	Value
Product Name	T.C.T Hole Saw
Material	High Carbon Steel or 65Mn Steel
Tip Material	Tungsten Carbide YG10
Pilot Drills	HSS 4341, 9341, 6542
Size	16-53mm
Shank	Triangle shank

Product Description

13pcs Hole Saw Cutter for Stainless Steel with Sand Blasted Aluminium Box

Key Features

Material: Alloy
Color: Silver
Length: 65-70mm
Chuck size: 10mm
Outside diameter sizes: 16mm, 18mm, 20mm, 22mm, 25mm, 26mm, 28mm, 30mm, 35mm, 40mm, 45mm, 50mm, 53mm

Applications

Stainless steel plate
F.R.P.
Copper plate
Iron plate
Brass plate
Aluminum plate
Alloy steel plate
Electrical controller box
Channel iron

Detailed Specifications

T.C.T Hole Saw Cutter in Box: 16mm, 18mm, 20mm, 22mm, 25mm, 26mm, 28mm, 30mm, 35mm, 40mm, 45mm, 50mm, 53mm

Package includes: 13 x Drill Bit Holes

Suitable for stainless steel plate, steel, casting, Aluminum Alloy, iron and other kinds of metal plate drilling. Each edge is designed for precise cutting work, minimizing the risk of collapse during operation.

Important Note:

The twist drill bit inside the drill is not detachable
Optimal for cutting within 2-5mm thickness; stainless steel plate and metal plate ≤15mm
The spring can be removed during use as it serves only as a buffer

Recommended RPM Table

DIA (MM)	STEEL PLATE	STAINLESS	CAST IRON
14-19	1190-800	1000-500	1790-1390
20-30	1160-710	890-440	1590-1240
31-40	960-640	800-400	1430-1110
41-50	870-570	720-360	1300-1010
51-60	760-510	640-320	1140-890
61-70	640-430	530-270	950-740
71-80	550-360	460-230	810-630
81-90	480-320	400-200	710-550
91-100	430-280	350-170	630-490
101-120	380-260	320-160	570-440
121-150	200-100	120-60	390-280

Operating Instructions

Insert the hole saw into the electric drill
Secure the drill chuck jaws on three flats of hole saw shank
Begin drilling using light feed pressure until the hole saw has begun drilling
Apply medium feed pressure once the cutter has engaged in material
Do not press the hole saw strongly into the material after the pilot drill has penetrated, as this may damage the carbide tips
Always use rotation hand drills with no impact or with a rotation only mode
