Vacuum Brazed Diamond Core Drill Bit 2 Inch for Concrete Granite

Product Details:

Place of Origin:	CHINA
Brand Name:	RTCRAFT or OEM
Certification:	ISO,MPA,TUV
Model Number:	2 inches

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Plastic tube,Blister card,Aluminium box
Delivery Time:	20-30days after your deposite
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Product Name::	Diamond Core Drill Bit	Material::	Alloy Steel
Processing::	Vacuum Brazed	Segment::	Diamond
Surface::	Painting Color As Per Your Request	Package::	Plastic Tube,Blister Card
Highlight:	diamond core drill bit , diamond tipped core drill bits

Vacuum Brazed Diamond Core Drill Bit 2 Inch Diameter For Concrete / Granite

Product name:	Diamond core drill bit
Material:	Alloy Steel
Processing:	Vacuum Brazed
Segment:	Diamond
Surface:	Painting color as per your request
Package:	Plastic tube, Blister card

Product Details

SIZE AND SPECIFICATIONS: Drilling diameter 2", Drilling depth 35mm, max Speed 12000rpm, M14 thread size
BOTH DRY & WET DRILLING: Designed for drilling without water cooling, though wet drilling is recommended for optimal results and bit longevity
VACUUM BRAZED DIAMOND CUTTER: Delivers superior drilling performance through vacuum brazed diamond cutter design and exceptional diamond grit hardness
EASY TO INSTALL AND USE: Compatible with most high-speed angle die grinders or standard electric hand drills with appropriate adapter
DRILLING TOUGHEST MATERIAL WITH EASE: Effective for concrete, granite, marble, ceramic tile, and other challenging masonry materials

Application

Cutting concrete, granite, marble, porcelain ceramic tile, and stone
Compatible with most angle die grinders or electric hand drills with adapter

Specification

Multifunctional dry and wet cutting design
Vacuum brazed diamond grits cutting edge
Durable and smooth cutting performance
Rugged one-piece construction eliminates need for separate arbor

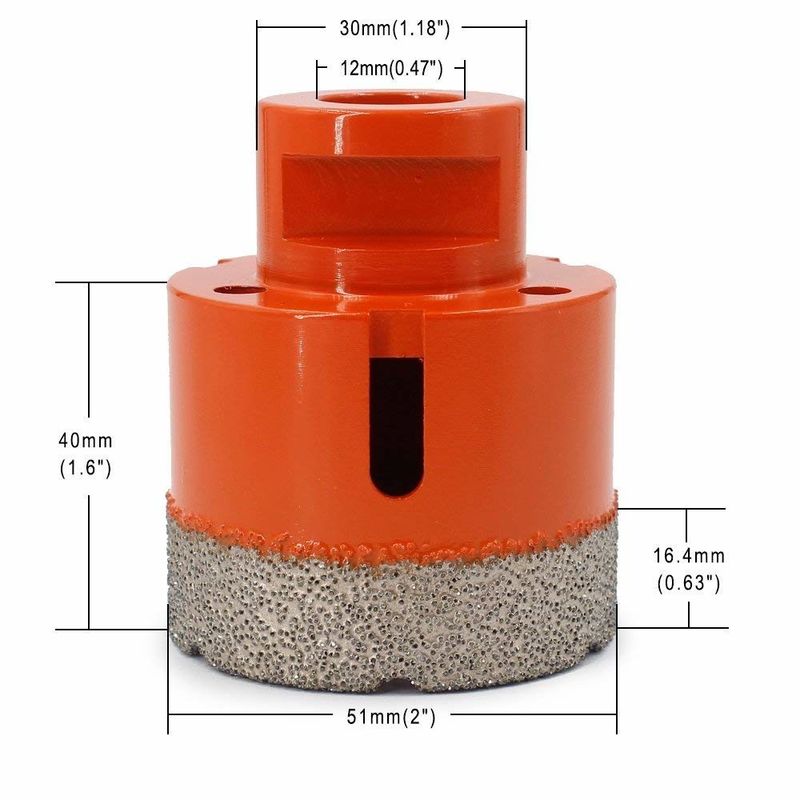

Product Dimensions

1. Cutting diameter: 2 Inch

2. Cutting depth: 35mm

3. Thread size: M14

4. Diamond grit Thickness: 15mm

5. Max speed: 12000rpm

Usage Notice

While these dry/wet core bits are designed for job site use without water cooling, wet cutting is recommended when possible. For best results:

Use a template when drilling free-hand
Clamp a scrap piece of stone underneath to prevent backside chipping
Begin drilling at 45° angle, gradually straightening to vertical position

Sample Policy

Free samples available for testing
Sample production time: 7-10 days

Delivery & Payment

Delivery: By sea, air, or express (20-30 days after deposit, depending on quantity)
Payment: Accept T/T, L/C, Western Union (20-30% advance payment, balance before shipment or against B/L copy)
