M12 Titanium Coated Spiral Flute HSS Machine Taps DIN371

M12 Titanium Coated Spiral Flute HSS Machine Taps DIN371

M12 Titanium Coated Spiral Flute HSS Machine Taps DIN371
M12 Titanium Coated Spiral Flute HSS Machine Taps DIN371
M12 Titanium Coated Spiral Flute HSS Machine Taps DIN371
Product Details:
Place of Origin: China
Brand Name: RTCRAFT OR OEM
Certification: ISO,MPA,TUV
Model Number: M2,M3,M4,ETC
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiation
Packaging Details: Plastic box,metal box for set
Delivery Time: 35 days after your deposite
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 500000pieces each month
Contact Now
Detailed Product Description
Product Name:: Taps And Dies Material:: HSS 4241,4341,6542,M35,M42
Flute:: Spiral Flute Precision:: H1,H2,H3,H4
Surface:: Ti-coated Procession:: Fully Ground
Highlight:

Spiral Flute HSS Machine Taps

,

Titanium Coated HSS Machine Taps

,

M12 HSS Machine Taps

M12 Titanium Coated Spiral Flute HSS Machine Taps
Product Specifications
Attribute Value
Product Name Taps and Dies
Material HSS 4241,4341,6542,M35,M42
Flute Spiral Flute
Precision H1,H2,H3,H4
Surface Ti-coated
Procession Fully Ground
Product Description
Right Hand Metric Size DIN371 Spiral Point Ti-Coated HSS Machine Taps
Key Features
  • High hardness for fast cutting and wear resistance at high temperatures

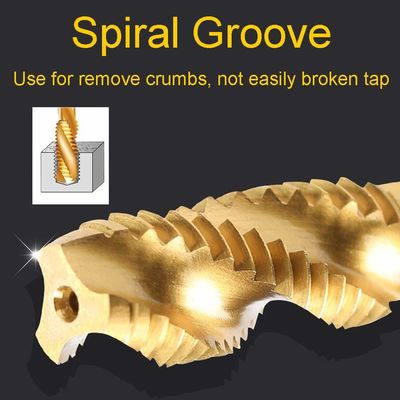

  • Spiral groove design facilitates chip removal and reduces tap breakage
  • Spiral chip evacuation makes it ideal for blind holes and sticky materials

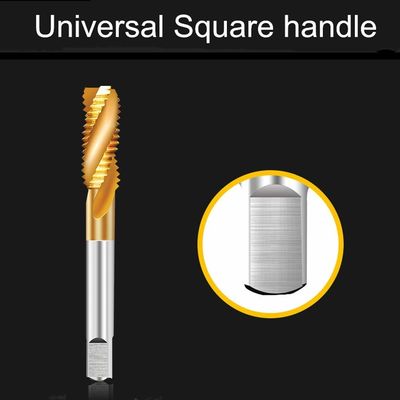

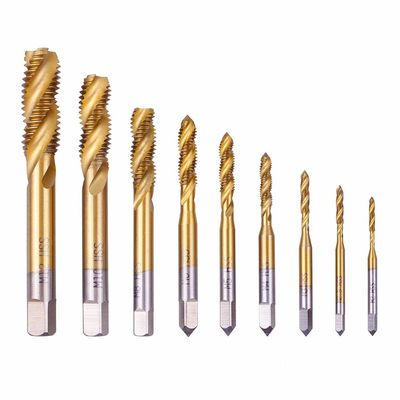

M12 Titanium Coated Spiral Flute HSS Machine Taps DIN371 0 M12 Titanium Coated Spiral Flute HSS Machine Taps DIN371 1
Applications

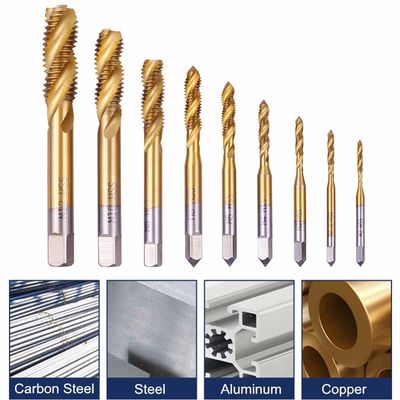

M12 Titanium Coated Spiral Flute HSS Machine Taps DIN371 2
Applicable Workpiece: Tensile strength 750N/mm² or less for low-carbon steel, copper, aluminum, magnesium alloy; anti-bonding strength 600-900N/mm² for high-carbon steel, alloy steel, bronze, etc.
Size Chart
SIZE OVERALL LENGTH THREAD LENGTH
M2*0.4 41 8.0
M2.2*0.45 44.5 9.5
M2.5*0.45 44.5 9.5
M3*0.5 48 11.0
M3.5*0.6 50 13.0
M4*0.7 53 13.0
M5*0.8 58 16.0
M5.5*0.9 62 17.0
M6*1 66 19.0
M7*1 66 19.0
M8*1.25 72 22.0
M9*1.25 72 22.0
M10*1.5 80 24.0
M11*1.5 85 25.0
M12*1.75 89 29.0
M14*2 95 30.0
M16*2 102 32.0
M18*2.5 112 37.0
M20*2.5 112 37.0
M22*2.5 118 38.0
M24*3 130 45.0
M27*3 135 45.0
M30*3.5 138 45.0
M33*3.5 151 51.0
M36*4 162 57.0
M39*4 170 60.0
M42*4.5 187 67.0
M45*4.5 187 67.0
M48*4 187 67.0
M52*5 200 70.0
M56*5.5 200 70.0
M60*5.5 221 76.0
M64*6 224 79.0
M68*6 234 79.0
Packaging & Delivery
  • Package: Plastic box
  • Delivery: 35 Days after deposit
  • Shipping: By sea or air. Express available for small orders

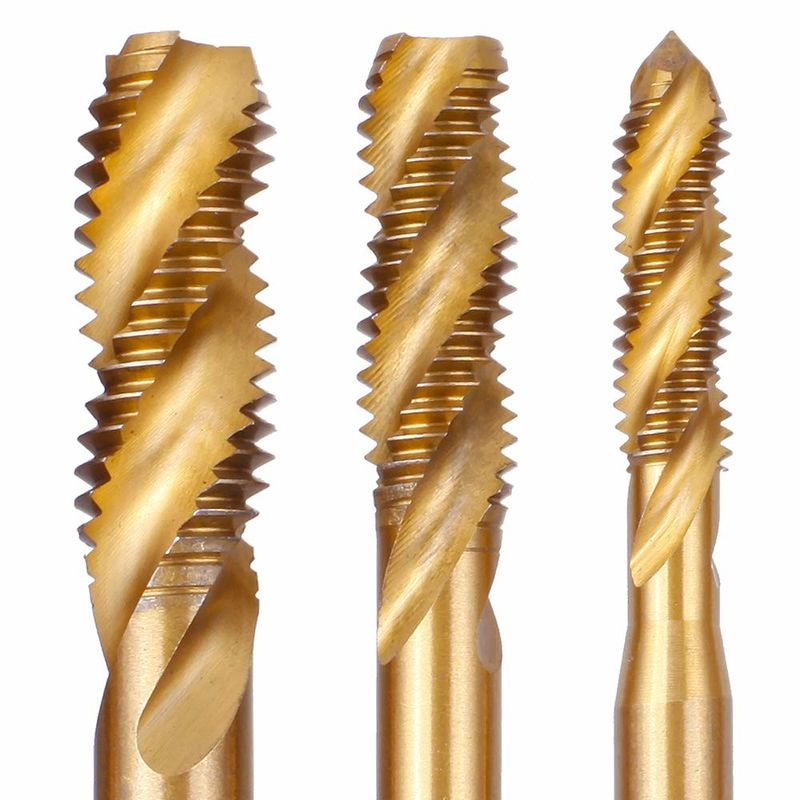

M12 Titanium Coated Spiral Flute HSS Machine Taps DIN371 3 M12 Titanium Coated Spiral Flute HSS Machine Taps DIN371 4
Payment & Sample Policy
  • Payment: 30% T/T in advance, balance before shipment or against B/L
  • Other payment methods available
  • Sample policy: Free samples available for testing
  • Sample delivery time: 7-10 days
M12 Titanium Coated Spiral Flute HSS Machine Taps DIN371 5
