Place of Origin: | China |
Brand Name: | RTCRAFT OR OEM |
Certification: | ISO,MPA,TUV |
Model Number: | M2,M3,M4,ETC |
Minimum Order Quantity: | 100pcs |
---|---|
Price: | Negotiation |
Packaging Details: | Plastic box,metal box for set |
Delivery Time: | 35 days after your deposite |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 500000pieces each month |
Product Name:: | Taps And Dies | Material:: | HSS 4241,4341,6542,M35,M42 |
---|---|---|---|
Flute:: | Spiral Flute | Precision:: | H1,H2,H3,H4 |
Surface:: | Ti-coated | Procession:: | Fully Ground |
High Light: | Spiral Flute HSS Machine Taps,Titanium Coated HSS Machine Taps,M12 HSS Machine Taps |

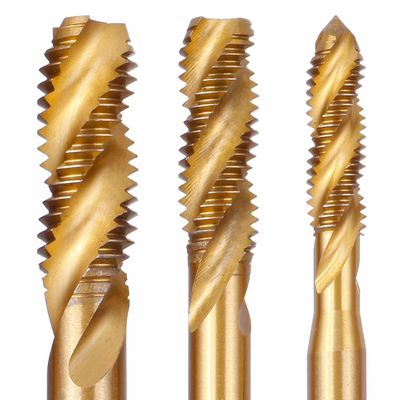

Right Hand Metric Size DIN371 Spiral Point Ti-Coated HSS Machine Taps
Details of HSS Machine Taps:
Features of HSS Machine Taps:
1. High hardness, fast cutting, wear high temperature.
2. Spiral groove is conducive to remove crumbs, not easily broken tap.
3. Tap the crumbs into a spiral up chip evacuation, it is more suitable for the processing of blind holes and sticky materials processing.
Application of HSS Machine Taps:
Applicable Workpiece:
Tensile strength 750N / mm 2 or less the low-carbon steel, copper, aluminum,
magnesium alloy; anti-bonding strength 600 ~ 900N / mm 2 the high-carbon steel, alloy steel, bronze, etc.
Size:
SIZE | OVERALL LENGTH | THREAD LENGTH |
M2*0.4 | 41 | 8.0 |
M2.2*0.45 | 44.5 | 9.5 |
M2.5*0.45 | 44.5 | 9.5 |
M3*0.5 | 48 | 11.0 |
M3.5*0.6 | 50 | 13.0 |
M4*0.7 | 53 | 13.0 |
M5*0.8 | 58 | 16.0 |
M5.5*0.9 | 62 | 17.0 |
M6*1 | 66 | 19.0 |
M7*1 | 66 | 19.0 |
M8*1.25 | 72 | 22.0 |
M9*1.25 | 72 | 22.0 |
M10*1.5 | 80 | 24.0 |
M11*1.5 | 85 | 25.0 |
M12*1.75 | 89 | 29.0 |
M14*2 | 95 | 30.0 |
M16*2 | 102 | 32.0 |
M18*2.5 | 112 | 37.0 |
M20*2.5 | 112 | 37.0 |
M22*2.5 | 118 | 38.0 |
M24*3 | 130 | 45.0 |
M27*3 | 135 | 45.0 |
M30*3.5 | 138 | 45.0 |
M33*3.5 | 151 | 51.0 |
M36*4 | 162 | 57.0 |
M39*4 | 170 | 60.0 |
M42*4.5 | 187 | 67.0 |
M45*4.5 | 187 | 67.0 |
M48*4 | 187 | 67.0 |
M52*5 | 200 | 70.0 |
M56*5.5 | 200 | 70.0 |
M60*5.5 | 221 | 76.0 |
M64*6 | 224 | 79.0 |
M68*6 | 234 | 79.0 |
Package and Delivery:
1. Package:Plastic box
2. Delivery:35 Days after your deposite
3. Shipping:By sea,By air,if small order,we can provide the Express.
Payment and Sample Policy:
1. Payment:30%T/T in advance,the balance before shipment or against the B/L
2. Other payment could be acceptable.
3. Sample poliy:We can provide samples for free for testing.
4. Samples time:About 7-10days.
