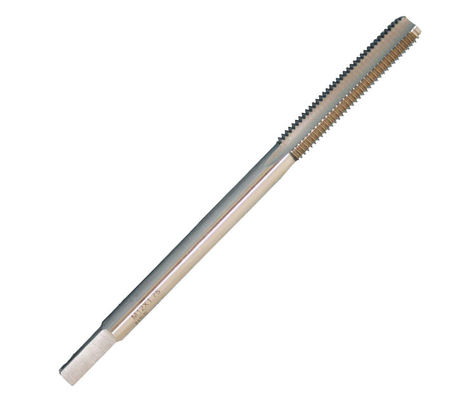

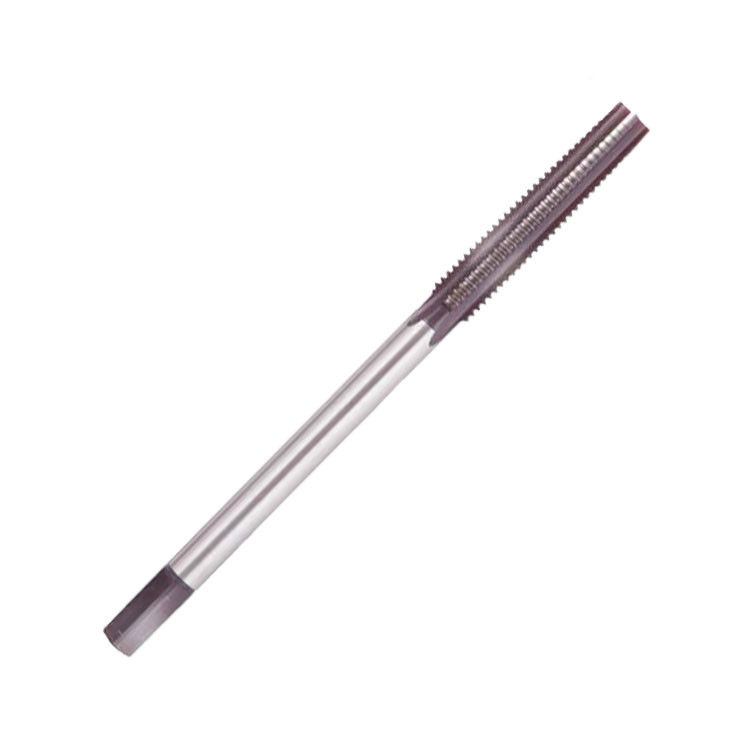

DIN357 HSS M30 Spiral Flute Nut Tap Square Shank

Product Details:

Place of Origin:	China
Brand Name:	RTCRAFT OR OEM
Certification:	ISO,MPA,TUV
Model Number:	M3-M30

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiation
Packaging Details:	Plastic box,metal box for set
Delivery Time:	35 days after your deposite
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	500000pieces each month

Contact Now

Detailed Product Description

Product Name::	Taps And Dies	Material::	HSS 4241,4341,6542,M
Process::	Fully Ground	Surface::	Bright Finished,others Can Be Available
Type::	Nut Tap	Flute::	Spiral Flute
Highlight:	DIN357 HSS Nut Taps , Spiral Flute HSS Nut Taps , M30 HSS Nut Taps

Square Shank M30 Spiral Flute DIN357 HSS Nut Taps

Product Specifications

Attribute	Value
Product Name	Taps and Dies
Material	HSS 4241,4341,6542,M
Process	Fully Ground
Surface	Bright finished, others can be available
Type	Nut Tap
Flute	Spiral Flute

Product Description

DIN357 HSS Nut Tap for Steel Stainless Steel Nut Thread Tapping

Key Features

Ideal for rethreading fasteners and fastener holes for auto and machinery repair
Precision milled SAE tap and die set for cutting raw material or repairing existing threads
Improves thread processing efficiency, essential for hand tapping operations
Straight flute design suitable for various tapping applications

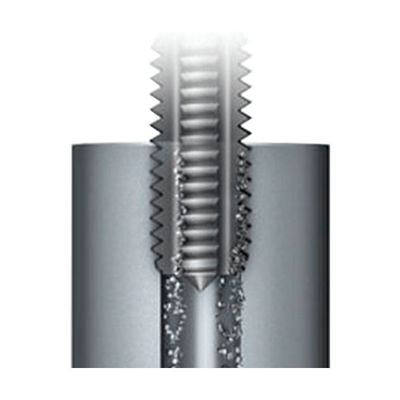

Can be used in both through and blind holes

Technical Details

Specification	Details
Product Name	DIN357 HSS Nut Tap for Steel Stainless Steel Nut Thread Tapping
Flute Type	Straight Flute (Spiral Flute, Spiral Point Available)
Standard	DIN357 (ANSI Standard Available)
Size	M3-M30
Thread Type	M (MF, UNC, UNF, BSW, BSP Available)
Material	HSS (Alloy Steel Available)
Process	Fully Ground
Shank Type	Square Shank
Surface Finish	Bright Finish (Tin-Coated, other High Performance Coating Available)
Package	10/5 Piece in One PVC Pouch or in Plastic Box

Size Chart

Size	Overall Length	Thread Length
M3*0.5	70	22
M3.5*0.6	80	25
M4*0.7	90	25
M4.5*0.75	100	28
M5*0.8	100	28
M6*1	110	32
M7*1	110	36
M8*1.25	125	40
M9*1.25	140	40
M10*1.5	140	45
M11*1.5	160	45
M12*1.75	180	50
M14*2	200	56
M16*2	200	63
M18*2.5	220	63
M20*2.5	250	70
M22*2.5	280	80
M24*3	280	80
M27*3	315	90
M30*3.5	315	100
